Sectional Flighting

Kay Mainline Manufacturing is the largest manufacturer of flighting in Australia. We manufacture all Sectional Flighting in house.

We manufacture Sectional Flighting and ribbon flighting in a vast array of materials.

• Mild Steel GR250 and GR350
• Stainless Steel 304 and 316
• Bissalloy 80, 400 and 500
• 253 MA, 2205 and 3CR12
• Creusabro 4800 and 8000

Sizes of 38mm Diameter and 3mm thick to 2400mm Diameter and 32mm thick Gauge 3mm to 50mm.

Sectional Flighting - Direction of screw rotation and material travel

Single Flight Standard Pitch

Flights that are spaced at the same distance as the outside diameter measurement of the flight.

Single Flight Half Pitch

Half pitched flights, are flights spaced at half of the outside diameter measurement of the flight.

Double flight Standard Pitch

2 flights that oppose each other by 180 degrees, the standard pitch is equal to the outside diameter of the flight.

Single flight Variable Pitch

Where the space between flights varies, the outside diameter of the flight remains the same.

Single flight Short Pitch

Where the space between flights is smaller than the outside diameter of the flight.

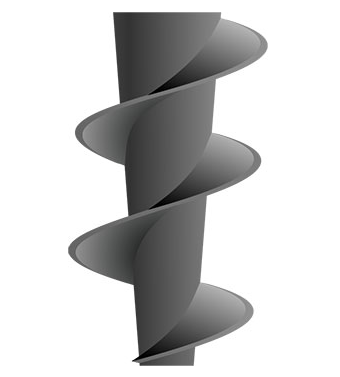

Coned flight

Internal tapered flighting with a consistent outside diameter.

Legged Ribbon Flight

Used for mixing applications to prevent material build up, with the “legs” spacing the flight from the pipe/shaft.

Centreless Flight

Consists of welded sectional flighting without a centre shaft, used for gummy products.

Please feel free to contact Kay Mainline with any queries on the above or with any other applications that you may require. Or give us a call on (03) 9793 4144.
